Product details
Suitable for near-field monitoring, far-field monitoring, and auxiliary sound reinforcement;
The axisymmetric design of the high and low frequencies ensures that the speaker's horizontal and vertical directivity is relatively consistent, reducing the lobe effect
of non-coaxial speakers, making the speaker closer to an ideal point sound source, resulting in better presence and clarity;
The asymmetric trapezoidal design facilitates angle adjustment for placement, allowing for convenient adjustments based on the needs of near and far fields, making
it more suitable for stage monitoring;
It is also very suitable for multifunctional use in front-of-house sound reinforcement and under-seat fill;

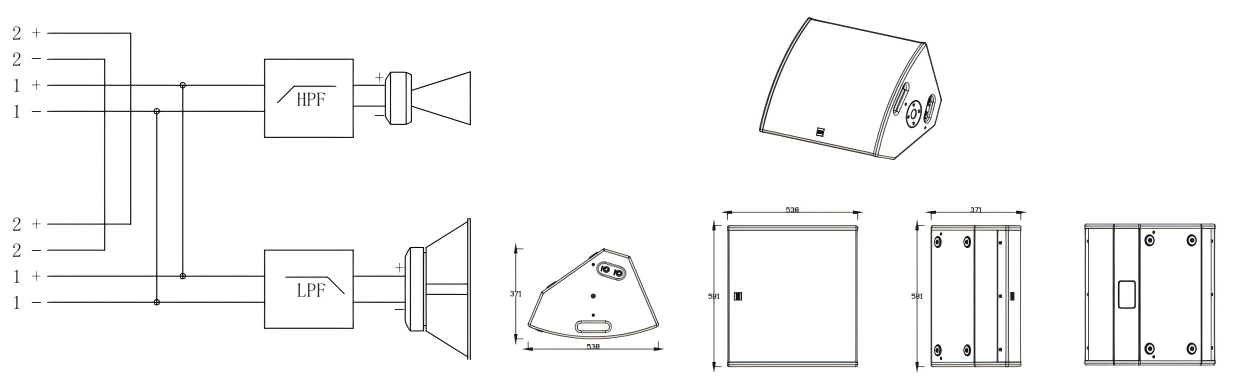

Utilizing a passive two-way design, with a nominal impedance of 8Ω, each speaker requires only one amplifier channel for driving, allowing for two speakers to be used
in parallel (resulting in a corresponding amplifier load of 4Ω).
Product technical specifications
Frequency response：50Hz -20kHz(-10dB)
Nominal Directivity HxV（-6 dB)：70°×70°
Maximum Peak SPL：125dB/131dB（Peak）
Power Handing(AES/Peak)：LF：500W（Rated）/2000W（Peak）
HF：100W（Rated）/400W（Peak）
Driver Components：LF：1×15”Driver
HF：1×3”Driver
Nominal lmpedance：8Ω
Input Connection：2x Neutrik NLT4M（+1/-1）
Dimension(mm)：H/W/D（581/538/371）mm
Weight：28KG
Case Material：First grade multi-layer plywood
Surface Treatment：PCP
Protection rating：IP54
