Product details
12-channel signal input, with one direct signal output per channel, allowing the mixer to supply 48V phantom power (with LED indicator display);
Two channels of signals come with isolated distribution outputs, and each output port is equipped with a floating/grounding switch.
Purpose: To split one microphone signal into 3 balanced signals, which are supplied to the main PA mixer, stage monitoring mixer, and OB recording mixer. The transformer-isolated output prevents mutual signal interference.
Product technical specifications

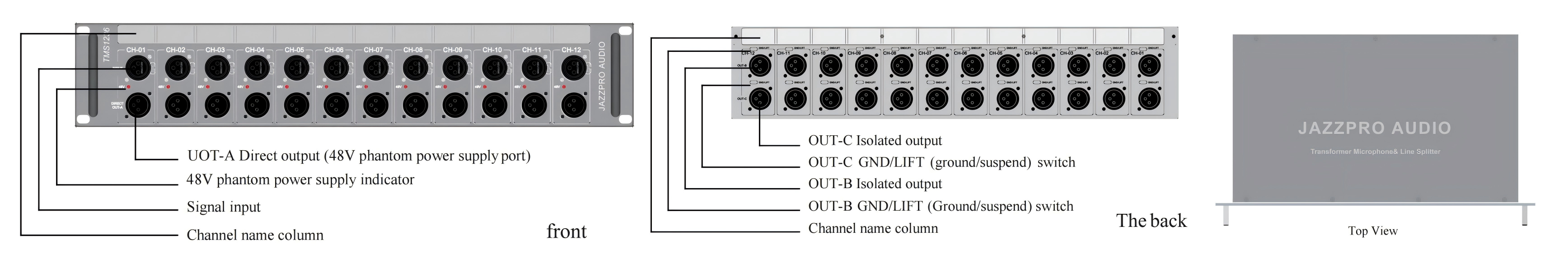

12-channel XLR balanced input
12-channel XLR balanced direct output (with 48V power supply indicator)
24-channel balanced isolated output (with floating/grounding switch)
Frequency range: 30Hz-35KHz
Distortion: less than 1% T.H.D
Voltage isolation: greater than 1KV/ac
Input impedance range: 600Ω-10KΩ
Output impedance range: 600Ω-10KΩ
Chassis dimensions: 485*90*288mm (W/H/D)
Weight: 6Kg
