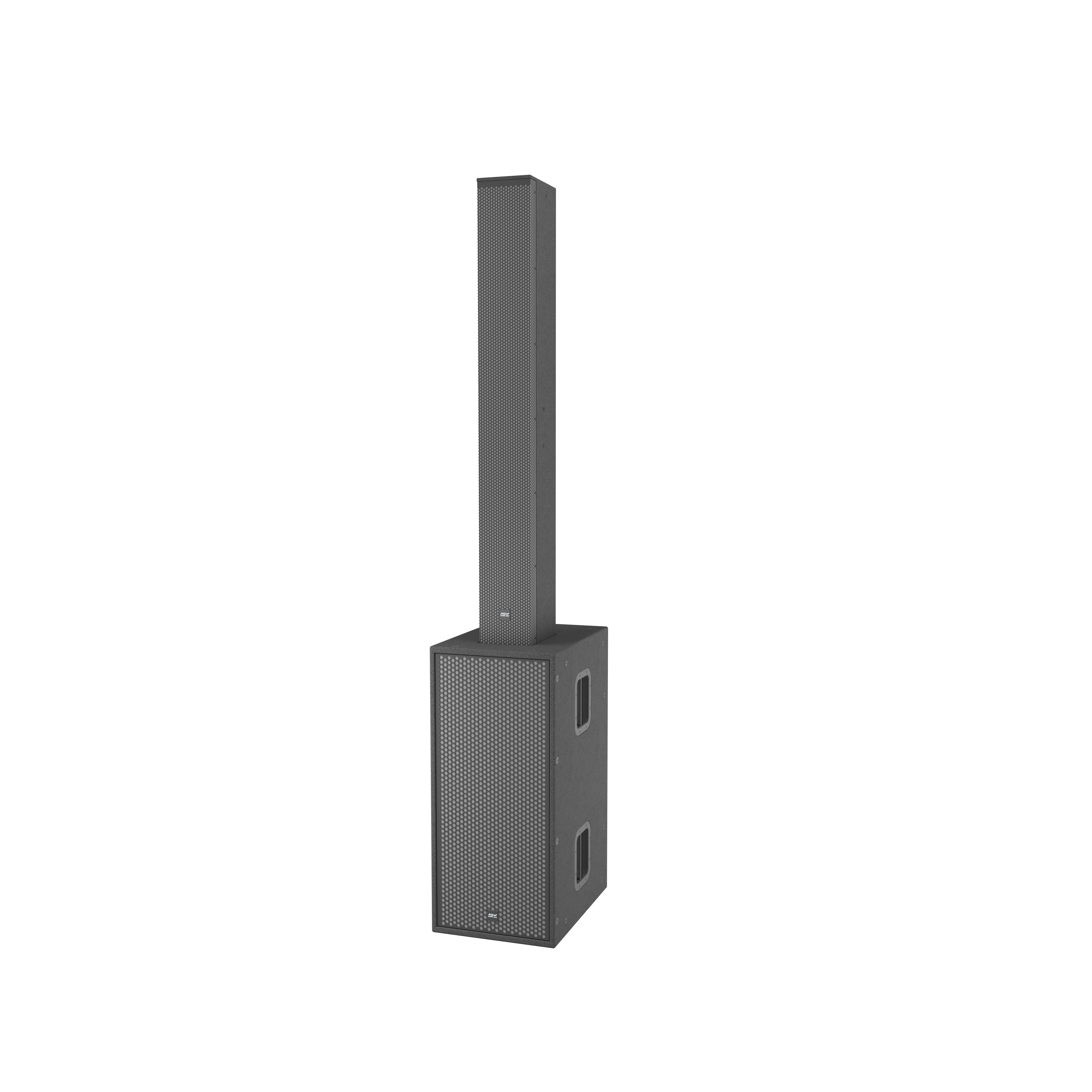

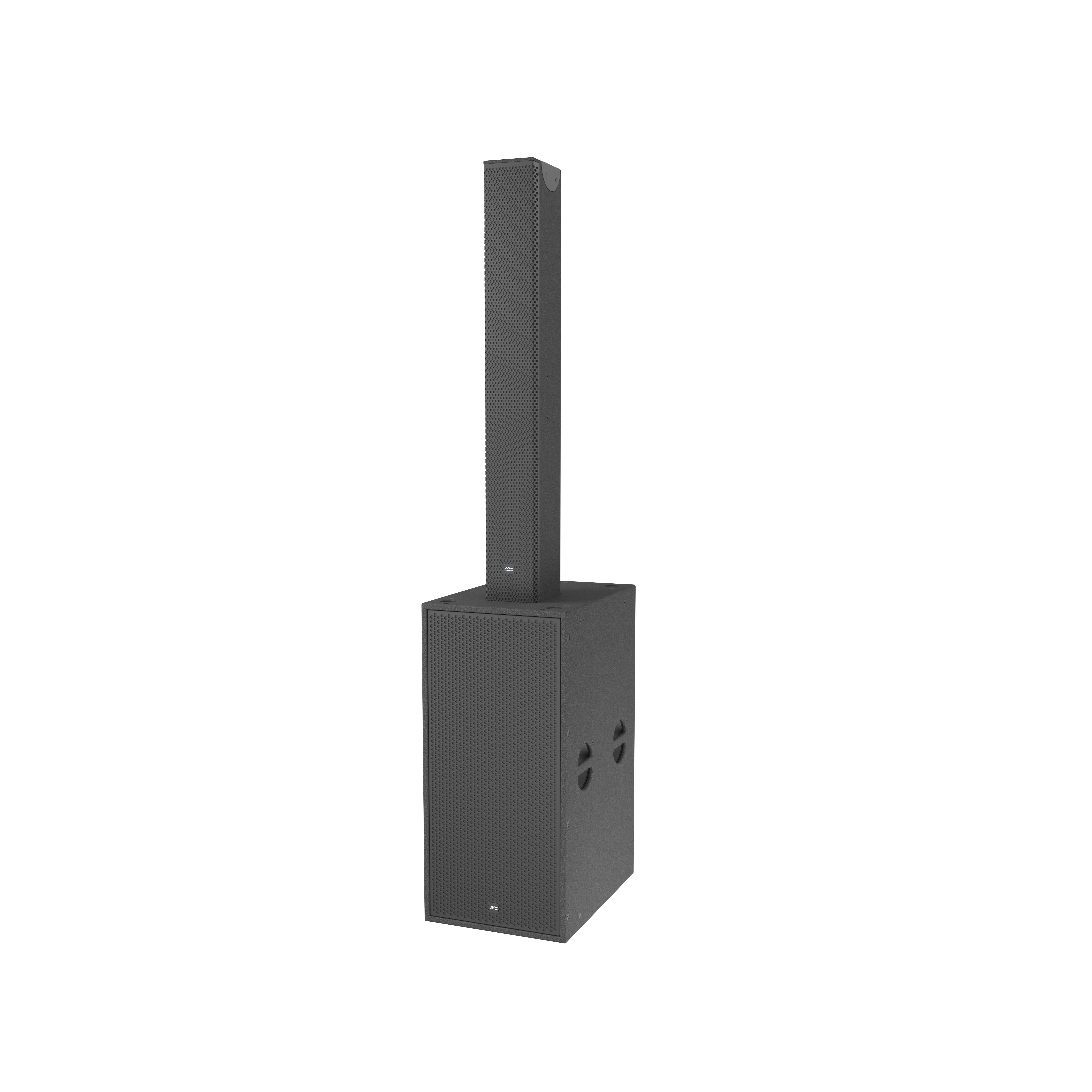

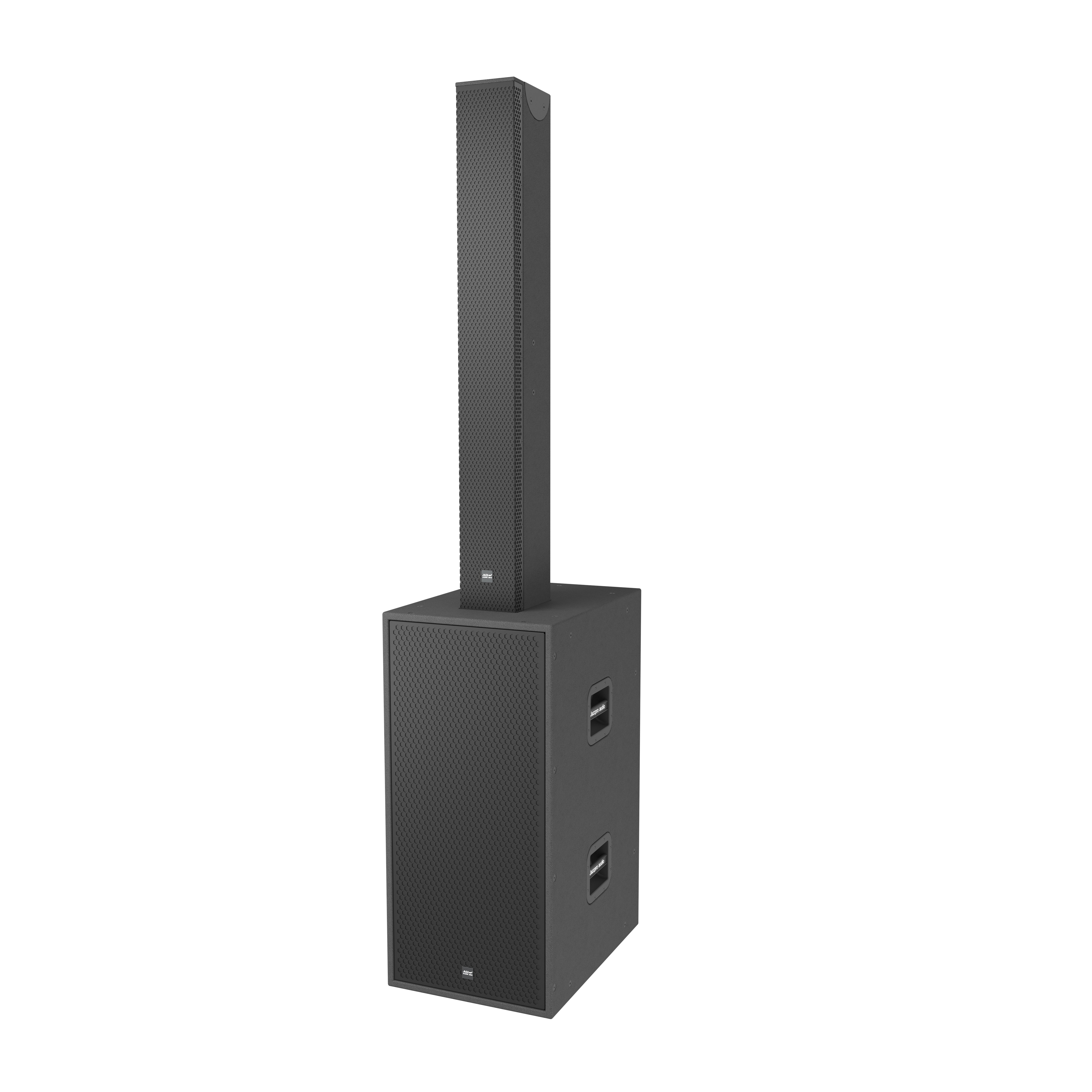

Product details
▲ Exquisite minimalist design
▲ Multiple scene presets
▲ Convenient plug-and-play operation
▲ Imported FIR filtering technology
▲ Wide coverage dispersion angle
▲ Long projection distance
Product technical specifications

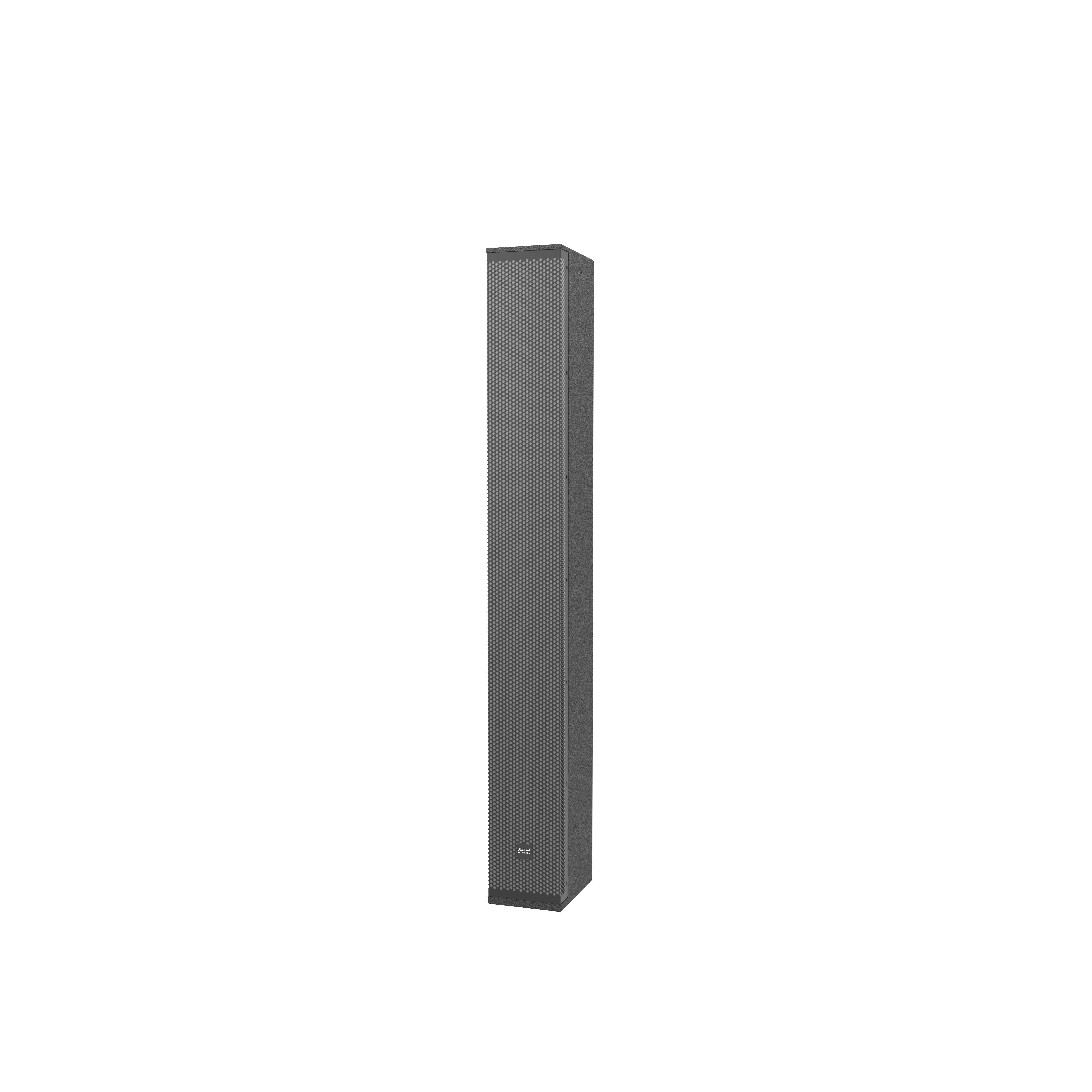

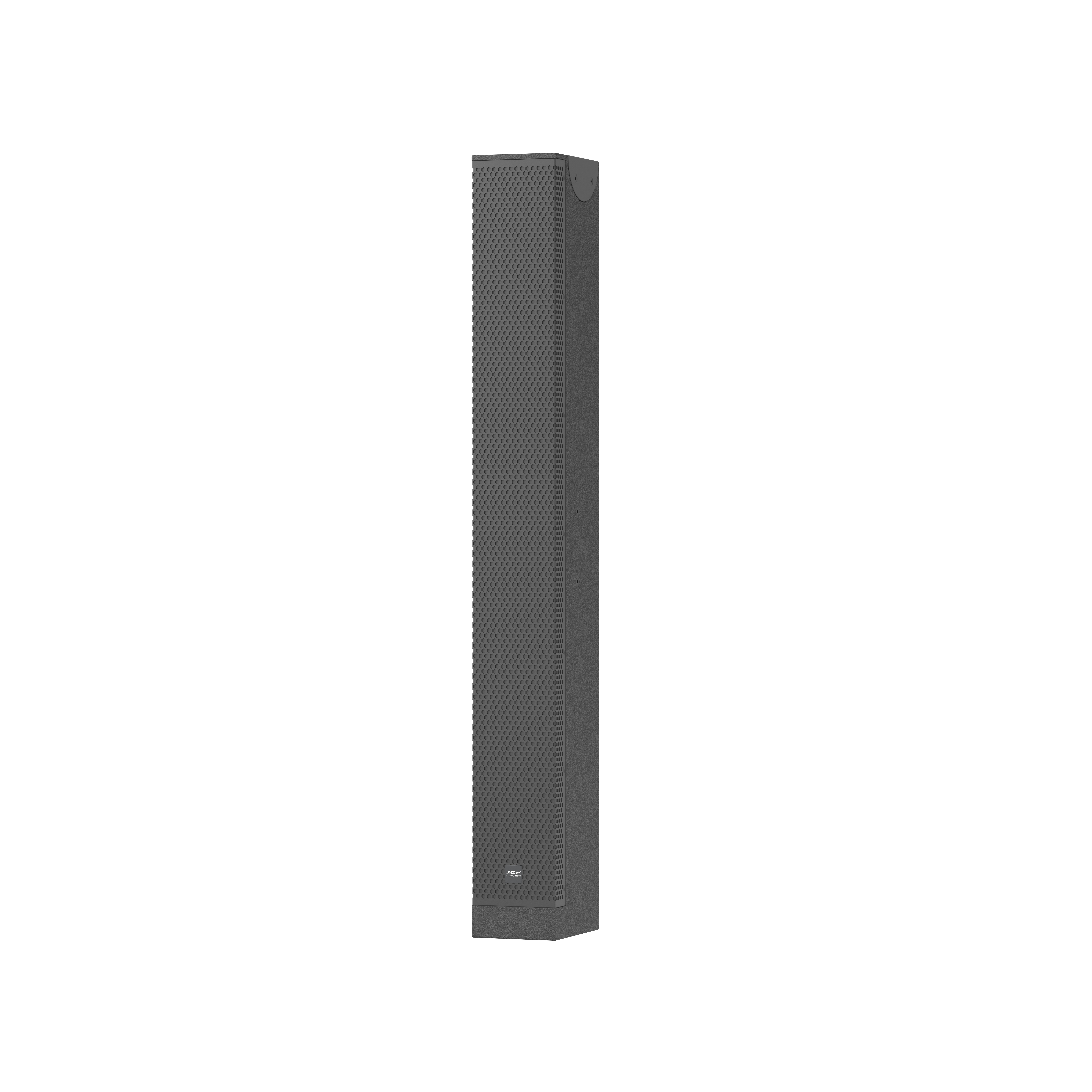

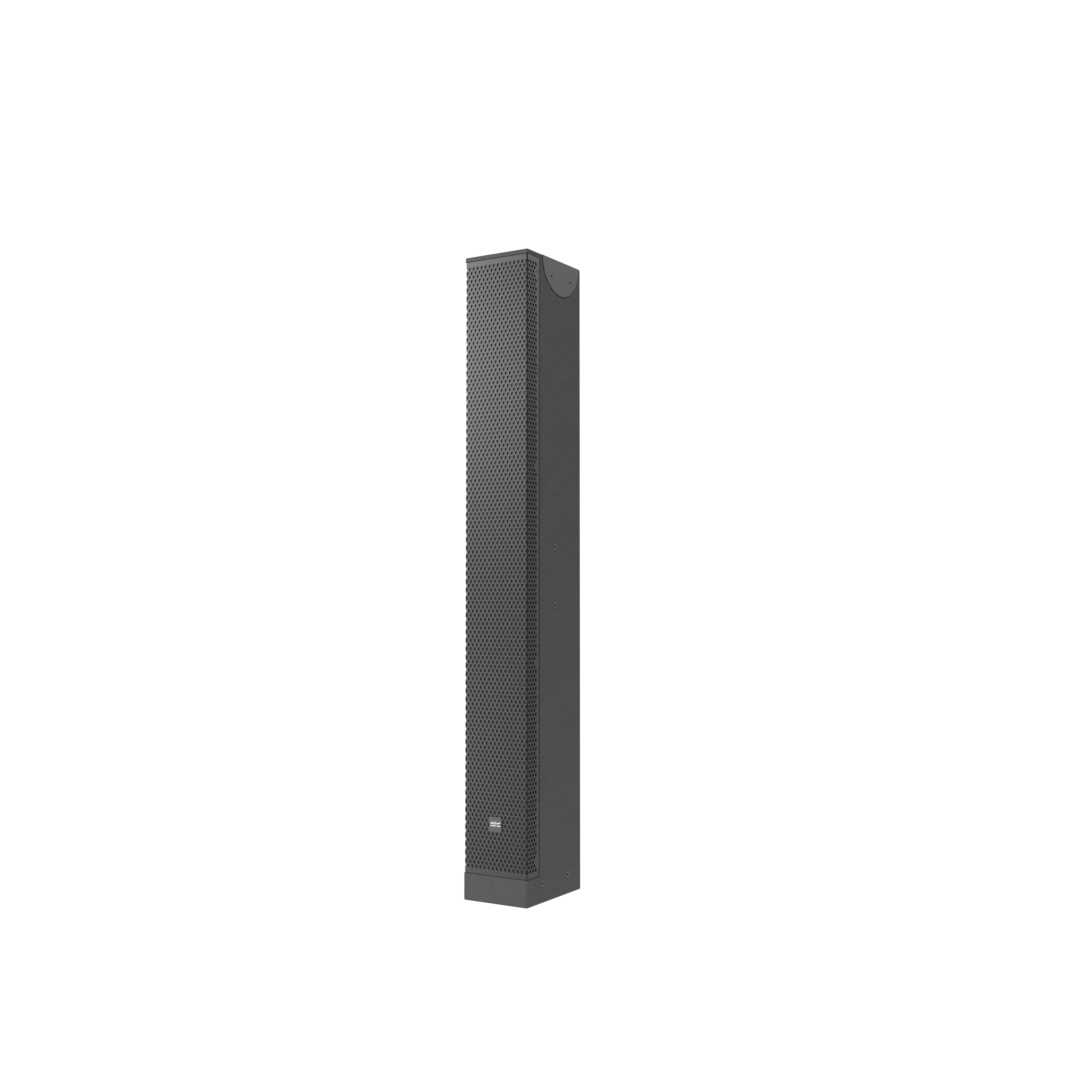

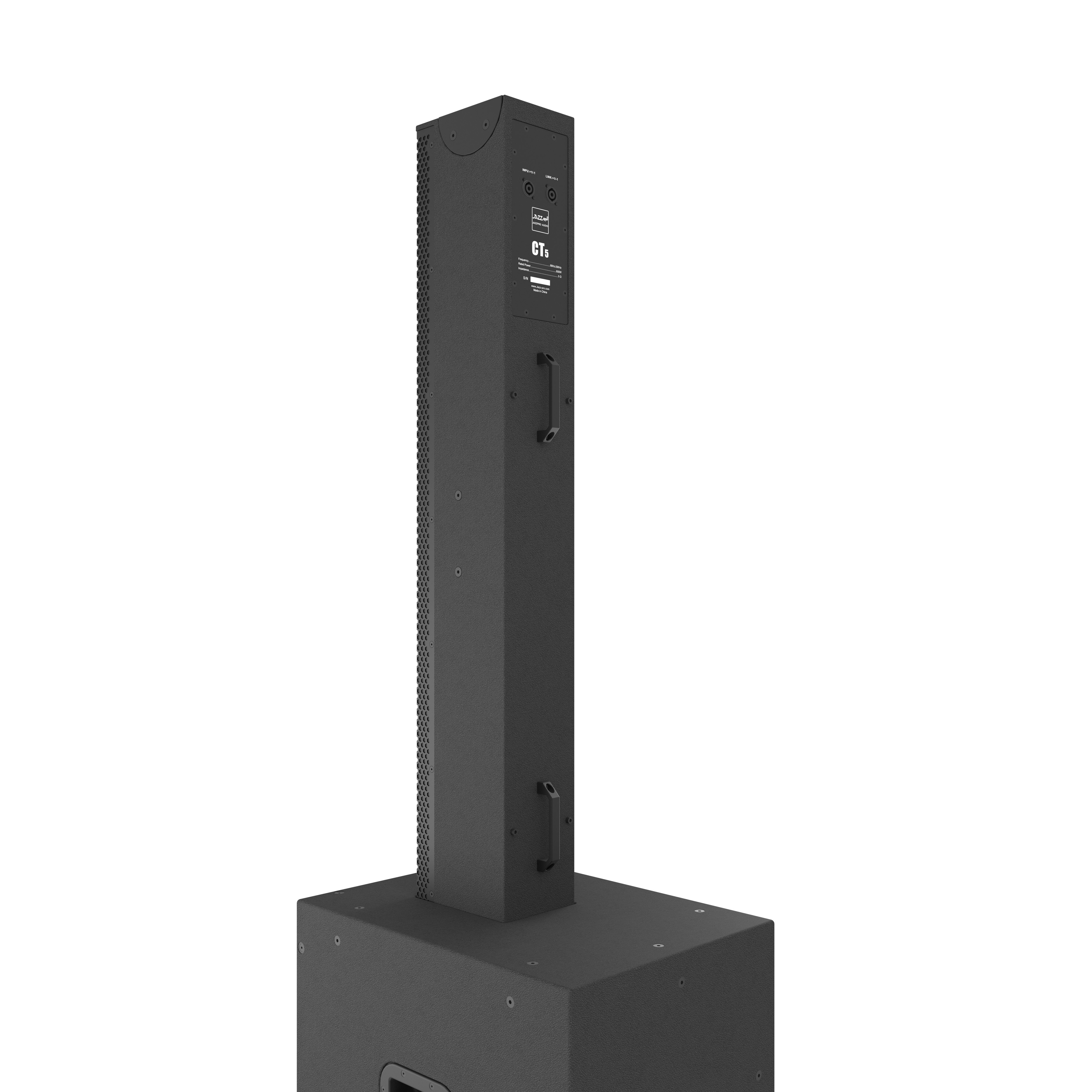

→CT5（column）
Frequency response：68Hz -20kHz(-10dB)
Nominal Directivity（-6dB）：100°×30°
Maximum Peak SPL：131dB/137dB（Peak）
Power Handing(AES/Peak)：LF 600W；HF 180W

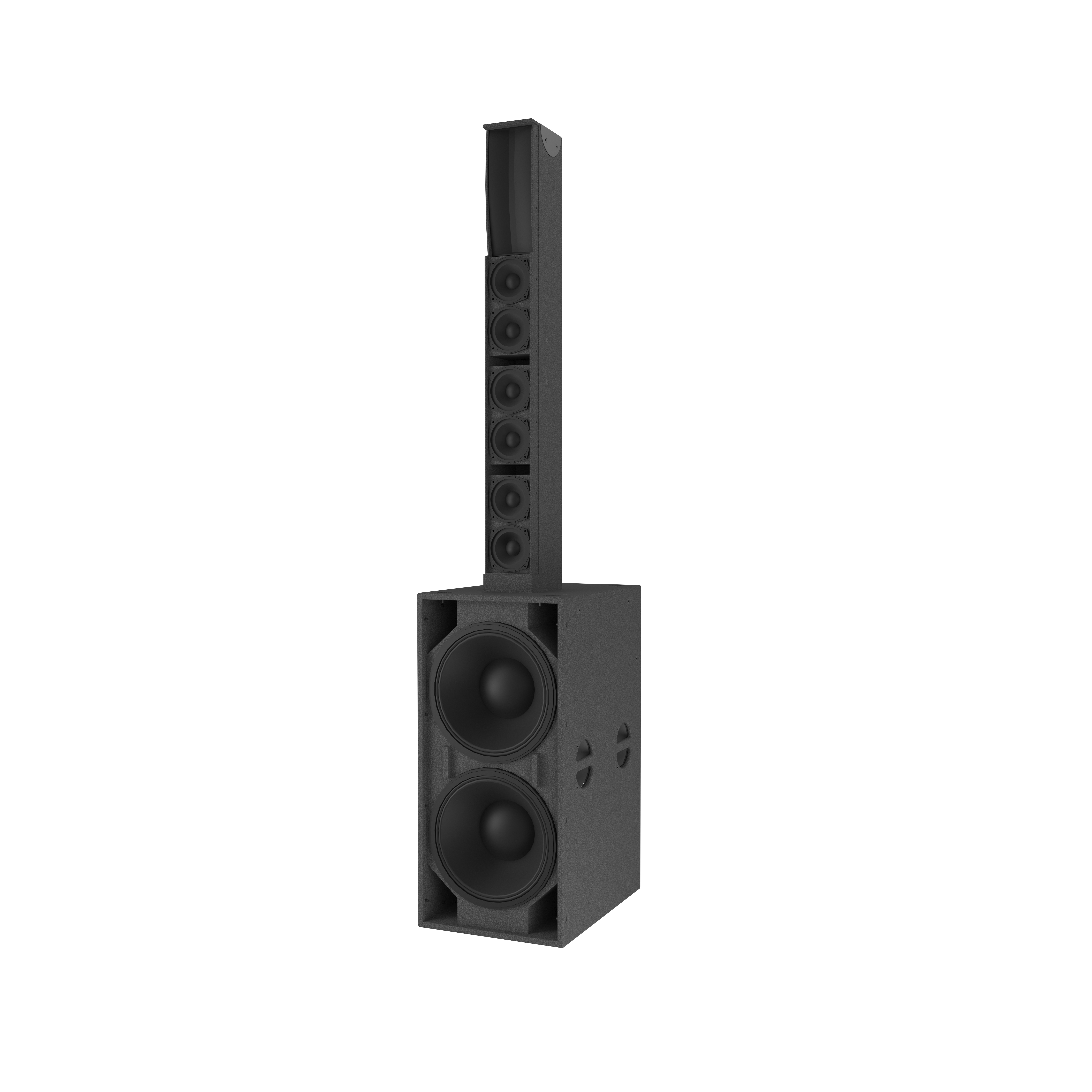

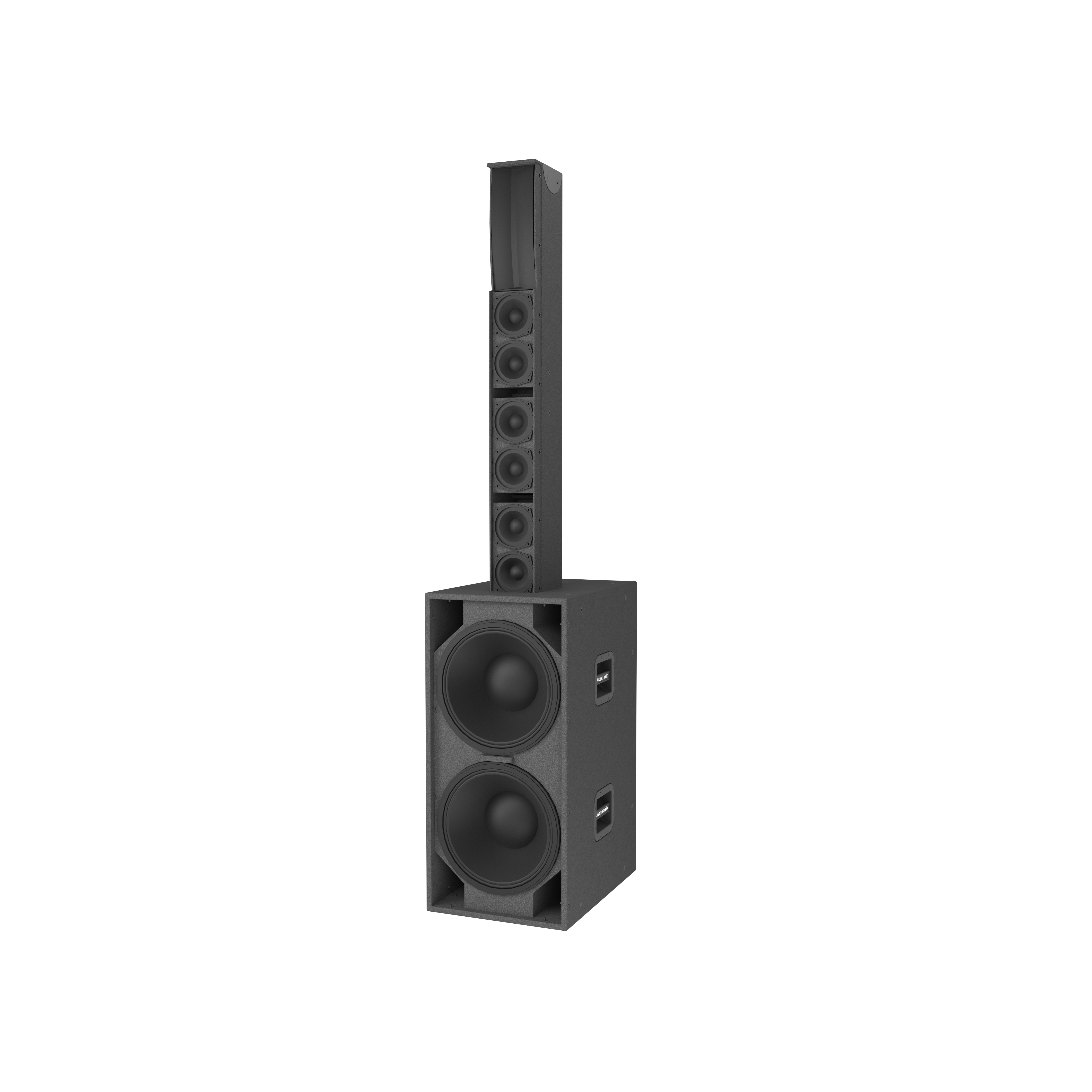

Driver Components：LF 6×5”Neodymium Drivers
HF 3×1.75”Neodymium Drivers
Nominal lmpedance：5Ω
Dimension(mm)：H/W/D（1286/154/212）mm
Weight：21KG
Case Material：First grade multi-layer plywood
Surface Treatment：PCP

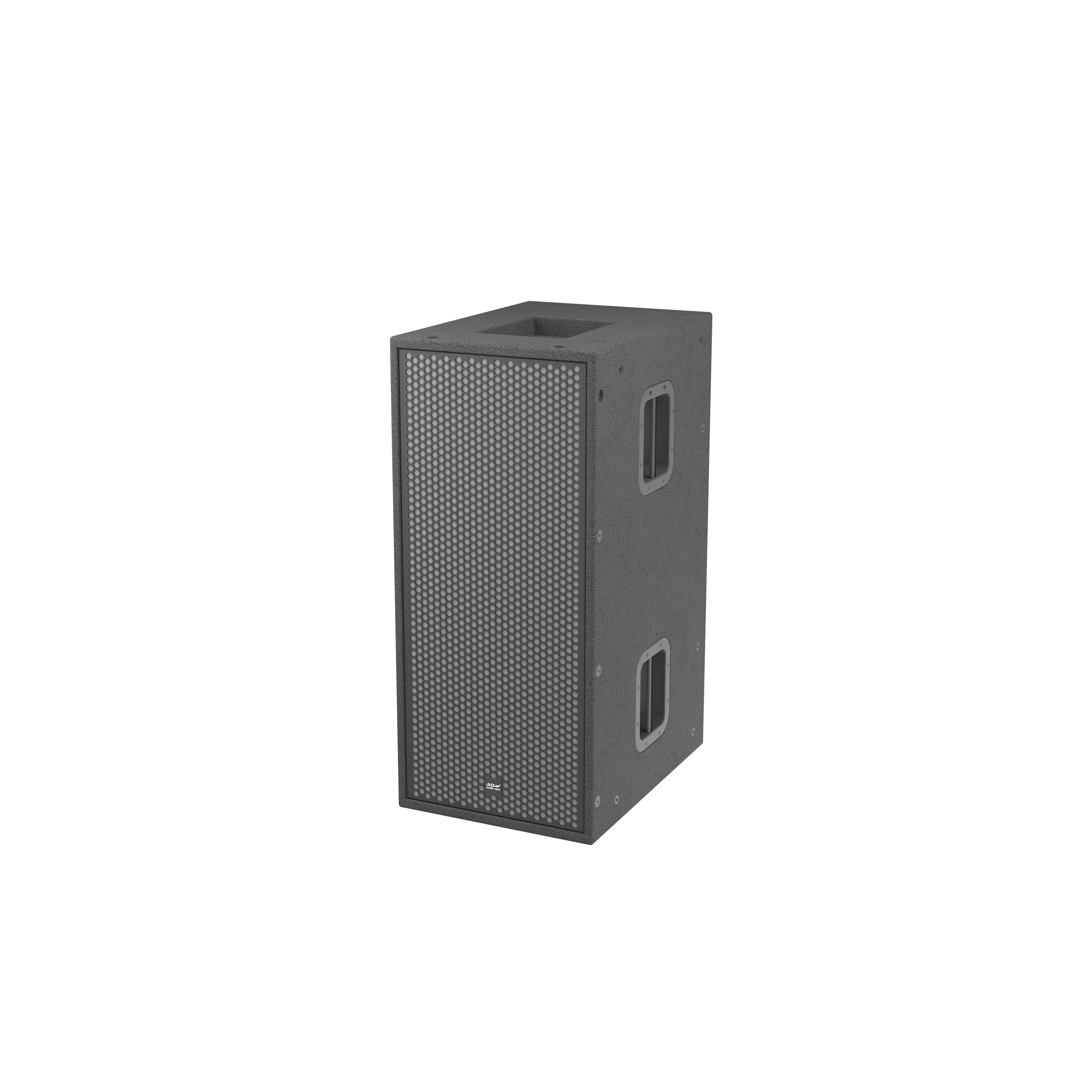

→CT212A（Active sub）
Frequency response：38Hz -1000Hz(-10dB)
Amplifier Power：12500W+1200W（4Ω）
Maximum Peak SPL：133dB/139dB（Peak）
Power Handing(AES/Peak)：800W
Driver Components：LF 2×12”Drivers
Nominal lmpedance：4Ω
Dimension(mm)：H/W/D（800/360/500）mm
Weight：48KG
Case Material：First grade multi-layer plywood
Surface Treatment：PCP
