Product details
▲ Exquisite minimalist design
▲ Multiple scene presets
▲ Convenient plug-and-play operation
▲ Imported FIR filtering technology
▲ Wide coverage dispersion angle
▲ Long projection distance
Product technical specifications

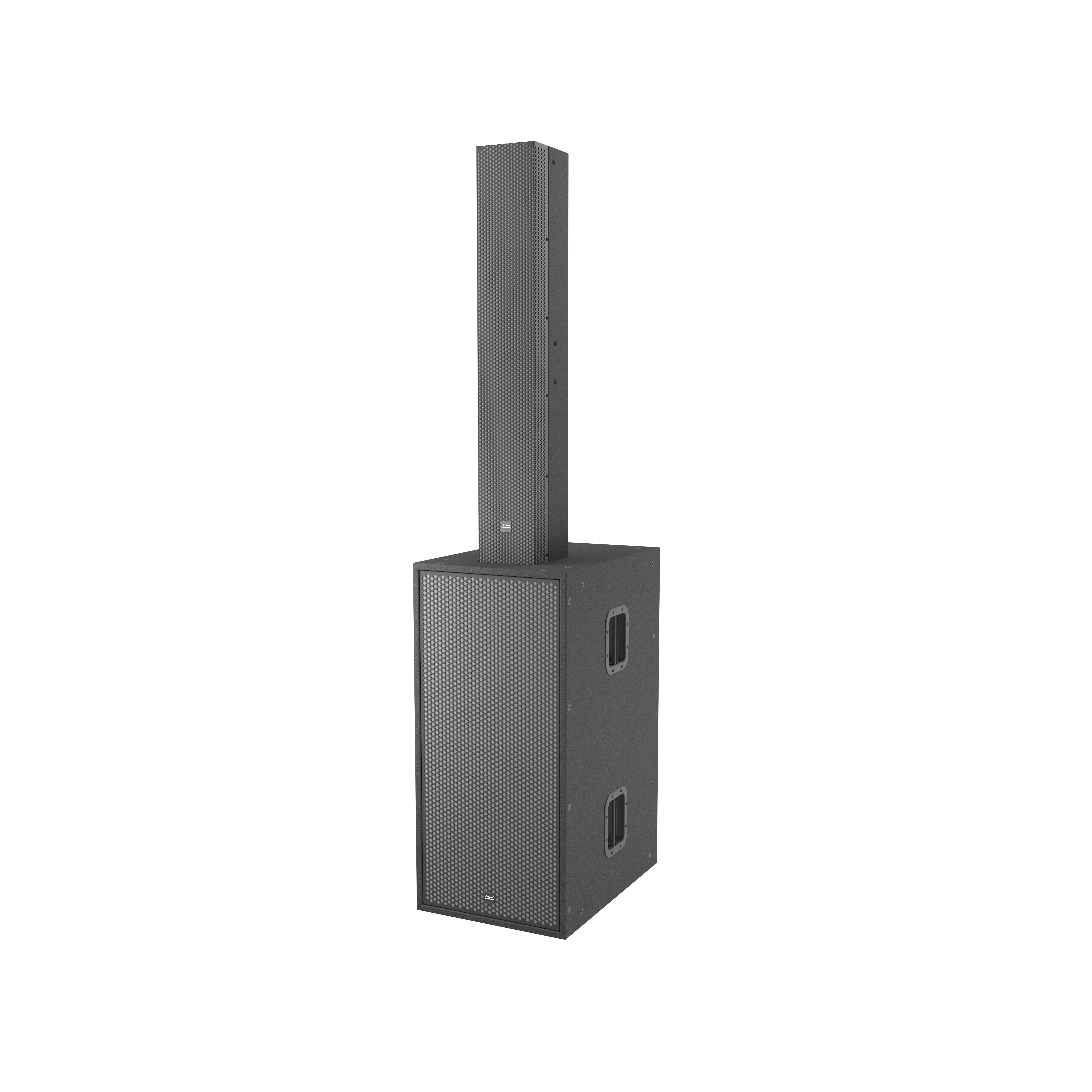

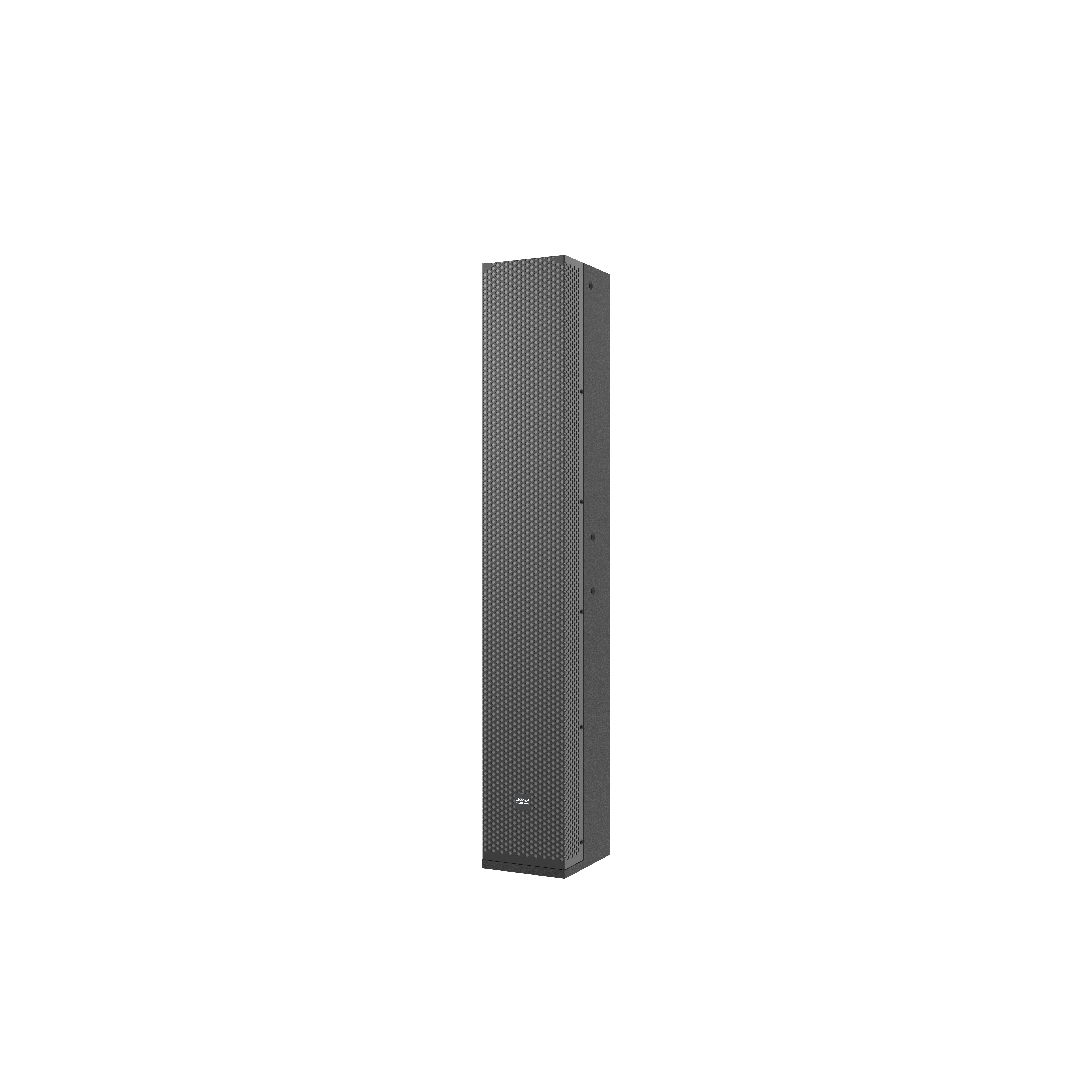

→CT5（column）
Frequency response：58Hz -20kHz(-10dB)
Nominal Directivity（-6dB）：100°×40°
Maximum Peak SPL：132dB/138dB（Peak）
Power Handing(AES/Peak)：LF 720W；HF 240W
Driver Components：LF 2×6.5”Neodymium Drivers
4×6.5”Coaxial Drivers（LF 6.5" driver+HF 1.5" driver）
Nominal lmpedance：5Ω
Dimension(mm)：H/W/D（1210/170/212）mm
Weight：23KG
Case Material：First grade multi-layer plywood
Surface Treatment：PCP
→CT215A（Active sub）
Frequency response：32Hz -1000Hz(-10dB)
Amplifier Power：12500W+1200W（4Ω）
Maximum Peak SPL：135dB/141dB（Peak）
Power Handing(AES/Peak)：1600W
Driver Components：LF 2×15”Drivers
Nominal lmpedance：4Ω
Dimension(mm)：H/W/D（950/450/630）mm
Weight：58KG
Case Material：First grade multi-layer plywood
Surface Treatment：PCP
