Product details
The low-frequency driver is mounted in a rear-firing configuration, creating a shallow horn loading at the front of the enclosure, which effectively improves the speaker's sensitivity and directivity. As a linear array speaker with a 12-inch three-way structure, it is characterized by a very high mid-high frequency density and rapid low-frequency response.

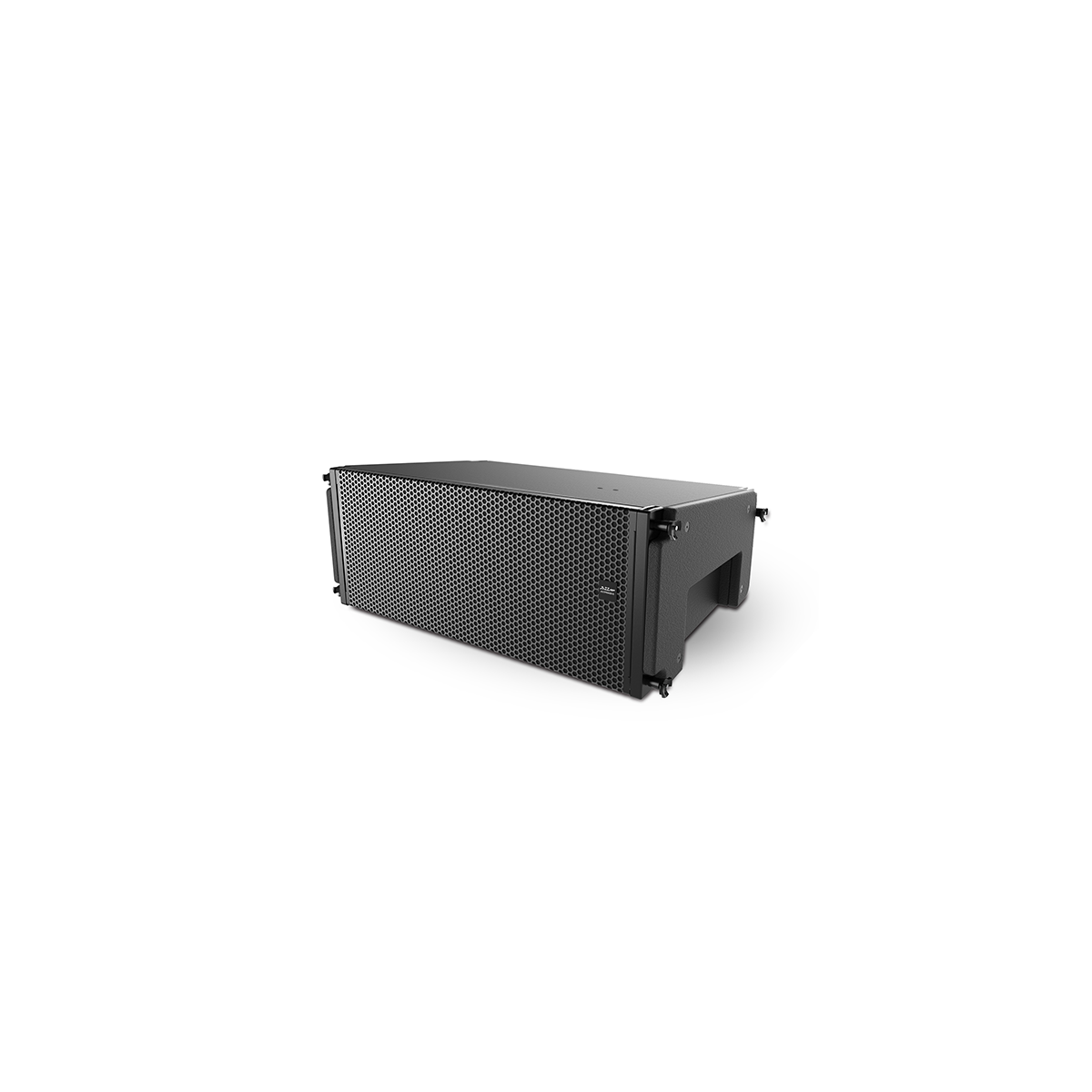

The J12CBT speaker enclosure is made of custom European grade multi-layer plywood,
and the surface is coated with a PCP (polyurea) chemical coating that fully complies with environmental protection standards.

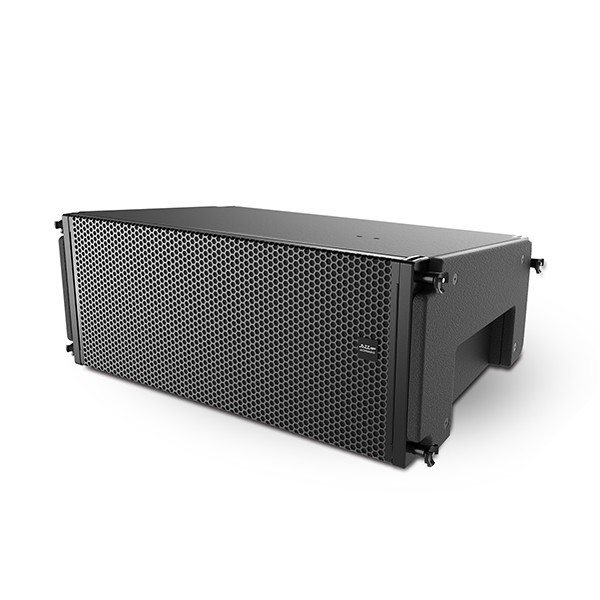

The front of the enclosure features a 2mm thick perforated protective steel grille and is lined with multiple layers of waterproof acoustic material,
providing strong resistance to wear, water, and moisture.
Product technical specifications
Frequency response：60Hz-20kHz（-10dB）
Nominal Directivity HxV（-6 dB)：90°×10°
Nominal Sensitivity ity（1W/1m）：105dB
Maximum Peak SPL：132dB/138dB（Peak）
Power Handing(AES/Peak)：LF：500W（Rated）/2000W（Peak）
MF：300W（Rated）/1200W（Peak）
HF：110W（Rated）/440W（Peak）
Driver Components：LF：1×12”Driver
MF：1×8”Driver（Coaxial）
HF：1×3”Driver（Coaxial）
Nominal lmpedance：8Ω
Input Connection：2x Neutrik NLT4M（+1/-1）
Rigging：3-point connection
Bending Angle：0°-10°，1° Enter

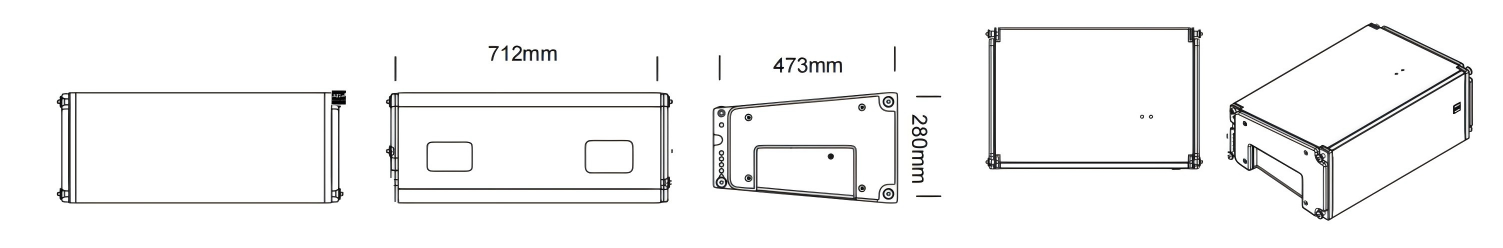

Dimension(mm)：H/W/D（280/712/473）mm
Weight：38KG
Case Material：First grade multi-layer plywood
Surface Treatment：PCP
Protection rating：IP54
